Vajra Steel Works offers an extensive range of long steel products that combine superior mechanical properties, including high tensile strength, yield strength, and impact resistance.
We offer the following range of long steel products:
BARS & ANGLES

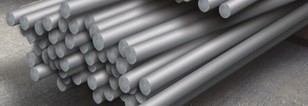

Round Bars:
- OD Range: Ø 10 mm – Ø 125 mm
- Length: Up to 12 meters
- Standard: EN 10060:2003, DIN 1013-1:1976

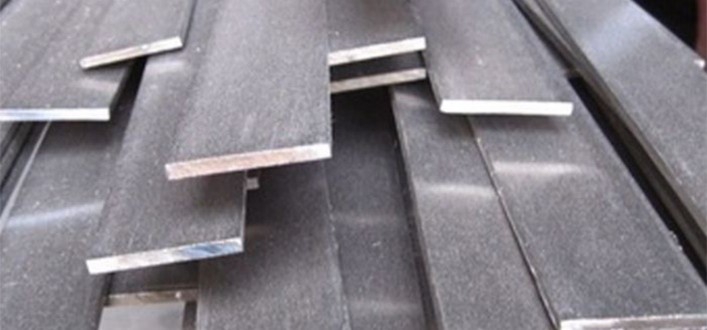

Flat Bars & Wide Flats:
- Width: 20 mm – 300 mm
- Thickness: 4 mm – 60 mm
- Length: Up to 12 meters
- Standard: EN 10058:2018, DIN 1017-1:1967

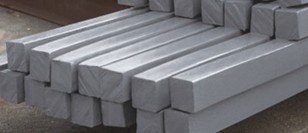

Square Bars:
- Size Range: 10 mm – 56 mm
- Length: Up to 12 meters
- Standard: EN 10059, DIN 1014

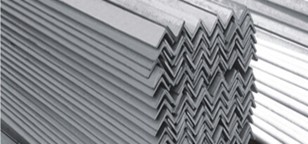

Equal Angles:
- Size Range: 20x20x3 mm – 130x130x12 mm
- Length: Up to 12 meters
- Standard: EN 10056-1:2017, DIN 1028:1994, EN 10056-2:1993
Unequal Angles:
- Size Range: 30x20x3 mm – 200x150x15 mm
- Length: Up to 12 meters
- Standard: EN 10056-1:2017, DIN 1029:1994, EN 10056-2:1993
BEAMS & CHANNELS

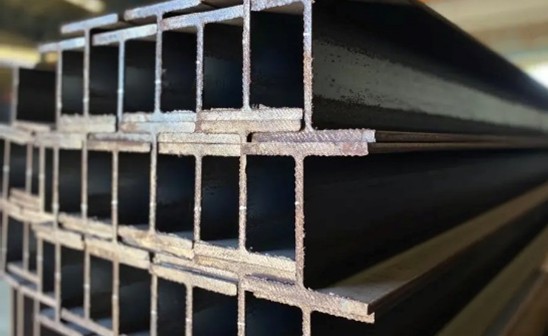

IPE / IPN Beams:
-
Size Range:
IPE 80 – IPE 600
IPN 80 – IPN 600 - Length: Up to 12 meters
- Standard: EN 10365: 2017
HEA / HEB / HEM Beams:
-
Size Range:
HEA 100 – HEA 1000
HEB 100 – HEB 1000
HEM 100 – HEM 1000 - Length: Up to 12 meters
- Standard: EN 10365: 2017
UPE / UPN Channels:
-
Size Range:
UPE 80 – UPE 400
UPN 50 – UPN 400 - Length: Up to 12 meters
- Standard: EN 10365: 2017
W Beams:
(American Wide Flange Beams)
- Size Range: W4 x 13 – W44 x 335
- Length: Up to 12 meters or 40 ft.
- Standard: ASTM A6
HOLLOW SECTIONS

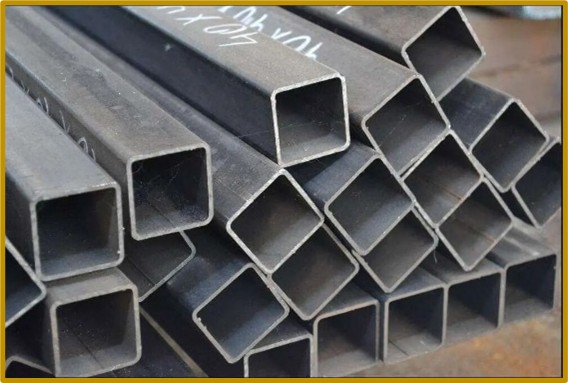

Square Hollow Section (SHS):
- Size Range: 20 x 20 x 2.0 mm – 400 x 400 x 12.5 mm
- Length: Up to 12 meters
- Type: Seamless/ Welded / ERW
- Standard: EN 10219-2:2019
Rectangular Hollow Section (RHS):
- Size Range: 40 x 20 x 2.0 mm – 400 x 200 x 10 mm
- Length: Up to 12 meters
- Type: Seamless/ Welded / ERW
- Standard: EN 10219-2:2019
Circular Hollow Sections (CHS):
- NB Range: 15 mm – 300 mm
- OD Range: Ø 21.3 mm – Ø 323.9 mm
- Thickness: 2.00 mm – 10 mm
- Length: Up to 12 meters
- Type: Seamless/ Welded / ERW
- Standard: EN 10219-2:2019
WIRES
GALVANIZED WIRE:
Material: Low-carbon steel wire
Diameter: Ø 0.40 mm – Ø 16 mm
Coating: Hot-Dipped Galvanized (Zn)
Coating Mass: 40-350 g/m²
Tensile Strength: 350-500, 500-700, 700-900 N/mm²
Coil Weight: Up to 1200 kg
Standard: EN 10244-2:2023
Applications: Wire netting, barbed wire, security panels, PVC coated wires, wire meshes, cages, bucket handles, and nails.
COLD DRAWN STEEL WIRE:
Material: High/Low-carbon steel wire
Diameter: Ø 0.75 mm – Ø 10 mm
Tensile Strength: 500-1900 N/mm²
Coil Weight: 750 – 2000 kg
Applications: Production of nails, staples, meshes, etc.

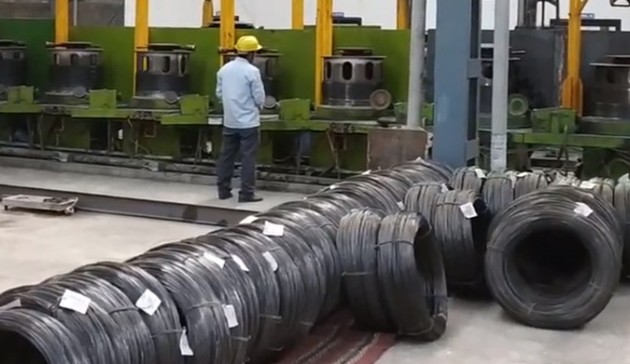

BLACK ANNEALED WIRE:
Diameter: Ø 0.90 mm – Ø 8 mm
Surface: Light coating of black soot
Tensile Strength: Max. 450 N/mm²
Coil Weight: Up to 2000 kg
WIRE ROD:
Material: Low/Medium/High-carbon Hot Rolled
Billets
Diameter: Ø 5.2 mm – Ø 22 mm
Coil Weight: Up to 2600 kg
